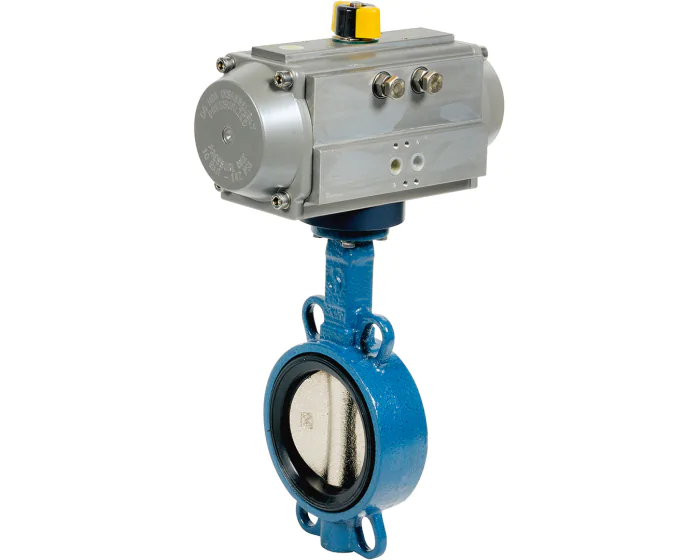

The 1123 wafer butterfly valve has a ductile iron GL body, a stainless steel 1.4408 disc and an EPDM seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar. Mounting between flanges PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Spring return |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 262103017006R | S1001002 |
€180.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 262103017107R | S1001003 |
€233.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 262104017006R | S1001004 |
€180.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 262104017107R | S1001005 |
€233.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 262105017007R | S1001006 |
€211.63
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 262105017108R | S1001007 |
€287.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 262106017007R | S1001008 |
€216.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 262106017108R | S1001009 |
€292.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 262107017008R | S1001010 |
€271.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 262107017110R | S1001011 |
€455.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 262108017008R | S1001012 |
€297.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 262108017110R | S1001013 |
€456.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 262109017009R | S1001014 |
€357.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 262109017111R | S1001015 |
€593.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 262110017010R | S1001016 |
€516.04
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 262110017112R | S1001017 |
€758.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 262111017011R | S1001018 |
€966.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 262111017113R | S1001019 |
€1,312.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 262112017012R | S1001020 |
€1,166.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 262112017115R | S1001021 |
€2,105.04
(excl. btw)
|
add to cart |
